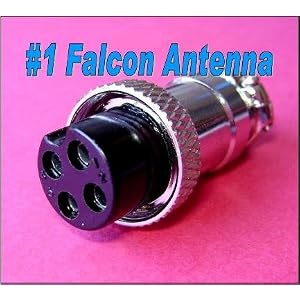

Pin Radio Microphone Female Plug
|
Circular connectors: Circular connectors are shaped in circular form and used principally for external interfacing. A connector will either be male type (with pins) or female type (with sockets) . A male connector includes pins that plug into a socket or similar receptacle. A female connector comprises of sockets that are aligned to mesh with a pin-type connector. Features Circular Connector is waterproof male contacts receptacle which prevents penetration of water into the interior of the equipment. Right angle plug ensuring ease of wiring with a sectioned shell. Latch-lock circular connector for audio equipment. Circular Connectors are provided with a grounding function to prevent external noise. Two types of plug-side cable clamp mechanisms are selectable along with the receptacle-side connectors in four sizes according to the design and mounting space requirement. The lock release levers in the plug receptacle come in two types that are selectable according to the application. An high-fidelity model is available, using terminals made from 6N high-purity oxygen-free copper. Circular Connector comes with rubber bushing to prevent harm from cable bending. Circular Connector are in compact, lightweight, sturdy, and highly dependable multi-pin circular connector with a connector outside diameter of 14.7mm Bayonet lock mechanism ensuring high insertion and extraction operability. In Circular Connector plugs, receptacles, and jacks of male and female terminal types are available Circular Connectors have snap-lock mechanism ensuring ease of insertion and extraction, and prevents the connector from disconnection due to shock or vibration. The plug cable ends has a bellows of mono-block construction preventing conductor disconnection harm from bending A versatile assortment of models with both straight and right angle plugs and receptacles available. Waterproof plug and receptacle prevent penetration of water into the interior of the equipment, so that the resin filling time is contracted with an increase in work efficiency Stopper preserving the clearance amidst the female terminals and insulator, preventing the female terminals from wobbling, and providing stable contact construction. Circular Connector has terminal solder pot in the same direction insuring betterment in wiring work Receptacle that may be mounted speedily on the panel surface by tightening a nut Shell with a cord bushing for increased cable curvature and shelter versus wire breakage when the cable is bent. Circular Connectors have five guide keys and white mark painted at the mating position ascertaining quick insertion and extraction with ease Circular Connectors have sequential construction with one of the three pins designed to come in contact before the other two pins. Applications:- Circular Connector may be employed in NC machine tools Electronic Engineering Services [http://www.engineeringservices.beganto.com/] |
